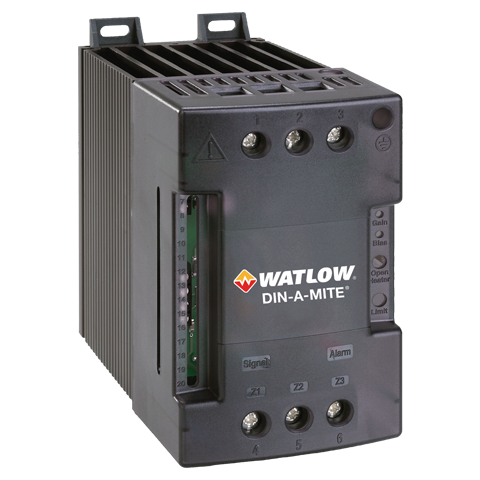

Watlow DIN-A-MITE Style C (SCR Controller)

• 2 controlled legs (2-phase to 3-phase)
• 277–600 V AC line voltage
• 4–20 mA proportional input signal
• Three-cycle variable time base output
• Fan-cooled with 120 V AC supply
• DIN-rail or panel mount
• No alarm
• Mfg Part# DC21-60F0-0000

Additional Product information:

The DIN-A-MITE C silicon controlled rectifier (SCR) power controller provides a low cost, compact and versatile solid state controller option for controlling electric heat. This solid state controller is designed and manufactured with the quality features expected from Watlow. DIN-rail and standard panel mounting plus a cabinet thru-wall mount version are available. Basic features of the solid state controller include single-phase, three-phase/two leg, and three-phase/three leg, 24-600VAC operation. Current switching capabilities range from 30 to 80A depending on the model ordered. Variable time base, linear voltage and current process control or VAC/VDC input contactor versions are available. Single-phase, phase angle firing and current limiting are also available. All configurations are model number dependent and factory selectable. This solid state power controller includes 200KA short circuit current rating (SCCR) tested up to 480VAC to prevent arch flash with required fusing.
